Lightweight Electric Single Beam Bridge Crane Introduction

The lightweight electric single beam bridge crane adopts frequency conversion control, lightweight design, and stable operation. It is suitable for multiple scenarios such as precision assembly, production line hoisting, and supports customized service!

Electric single beam bridge crane is used with electric hoist CD, MD type, a lightweight crane with rail operation, which is also one of the best-selling models on the market. This product is a general purpose crane. Electric single beam bridge crane has the characteristics of light weight, small size, compact structure, variety specifications, smooth operation, etc., and is widely used in machinery manufacturing, assembly workshop and warehouse.

Electric single beam bridge crane

Structure Characteristics and Working Principle

Electric single beam bridge crane composed of the bridge frame, lifting mechanism, car operation, car operation and electrical four main parts, the use of trolley type wire rope electric hoist as the lifting mechanism.

Main Beam

The electric single beam bridge crane adopts three-beam structure, the main beam and the end beam are connected with high-strength bolts, in order to prevent the operating mechanism from traveling to the limit position, the left and right sides of the main beam are provided with buffer blocks.

Hoisting Mechanism

The electric hoist used in the lifting mechanism is jointly designed and produced by professional manufacturers.

Electrical Equipment

The operation of each mechanism of the crane is operated by the ground operator. The lifting mechanism of the single-beam crane is completed by the electric hoist. The rated voltage is 380V, the rated frequency is 50HZ, the insulation level is F, and the protection level is IP44.

Brake

The brake is cone brake.

Motor

The reducer adopts electric hoist transmission.

characteristics of the electric hoist are detailed in the manual.

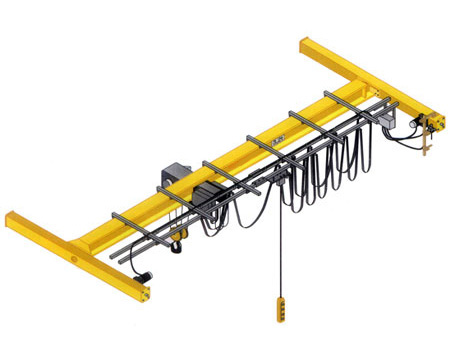

Lightweight single beam crane with rope hoist

Vehicle

The vehicle operating mechanism adopts four-wheel drive, and the driving motor is 2 conical brake motors, and the number of driving wheels is half of the total number of wheels.

Electric System

The operation of each mechanism of the crane is operated by the ground personnel, and the control handle or wireless remote control is matched with the electronic control equipment. Realizing the starting, reversing, lifting and braking the motor of each mechanism.

Working Condition

Electric Tension

~380V,50HZ

Temperature

-25℃-+40℃

Electric Fluctuation

±10%

Relative Humidity

≤85%

Electrical Equipment

The operation of each mechanism of the crane is operated by the ground operator. The lifting mechanism of the single-beam crane is completed by the electric hoist. The rated voltage is 380V, the rated frequency is 50HZ, the insulation level is F, and the protection level is IP44.

Brake

The brake is cone brake.

Motor

The reducer adopts electric hoist transmission.

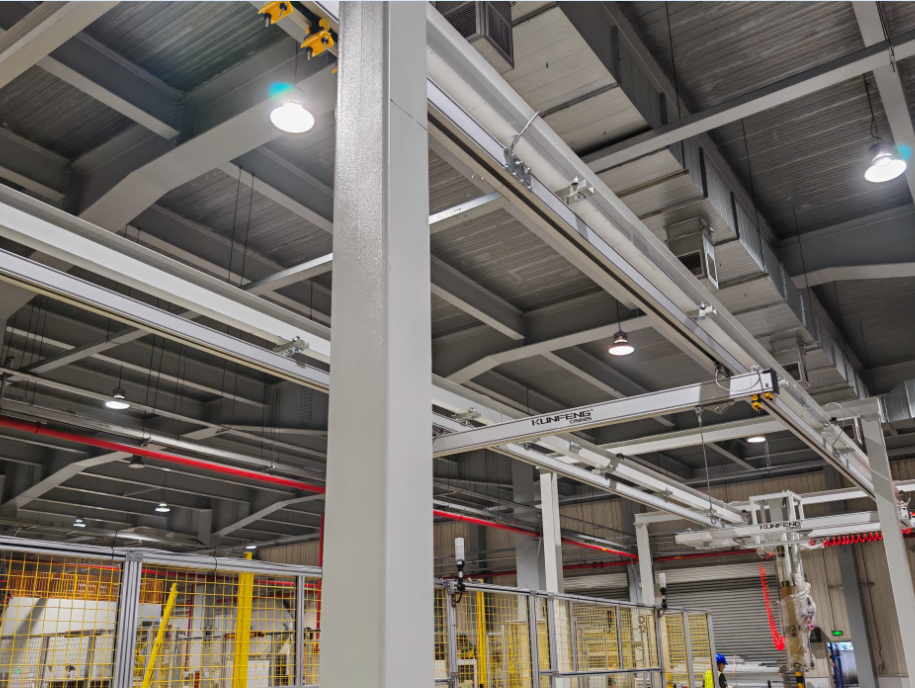

Aluminum rail single beam bridge crane

The electric single beam bridge crane can not only flexibly customize the lifting capacity, span and control mode according to the needs of the site, but also ensure the accuracy and reliability of the operation through frequency conversion speed regulation and multiple safety protection devices. If you need to know more product parameters or customized solutions, please contact our business team to provide you with free consultation and technical support!
