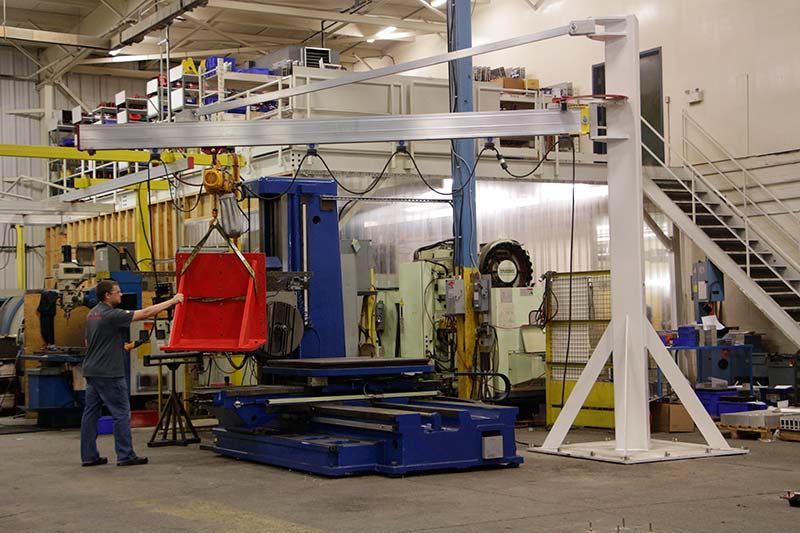

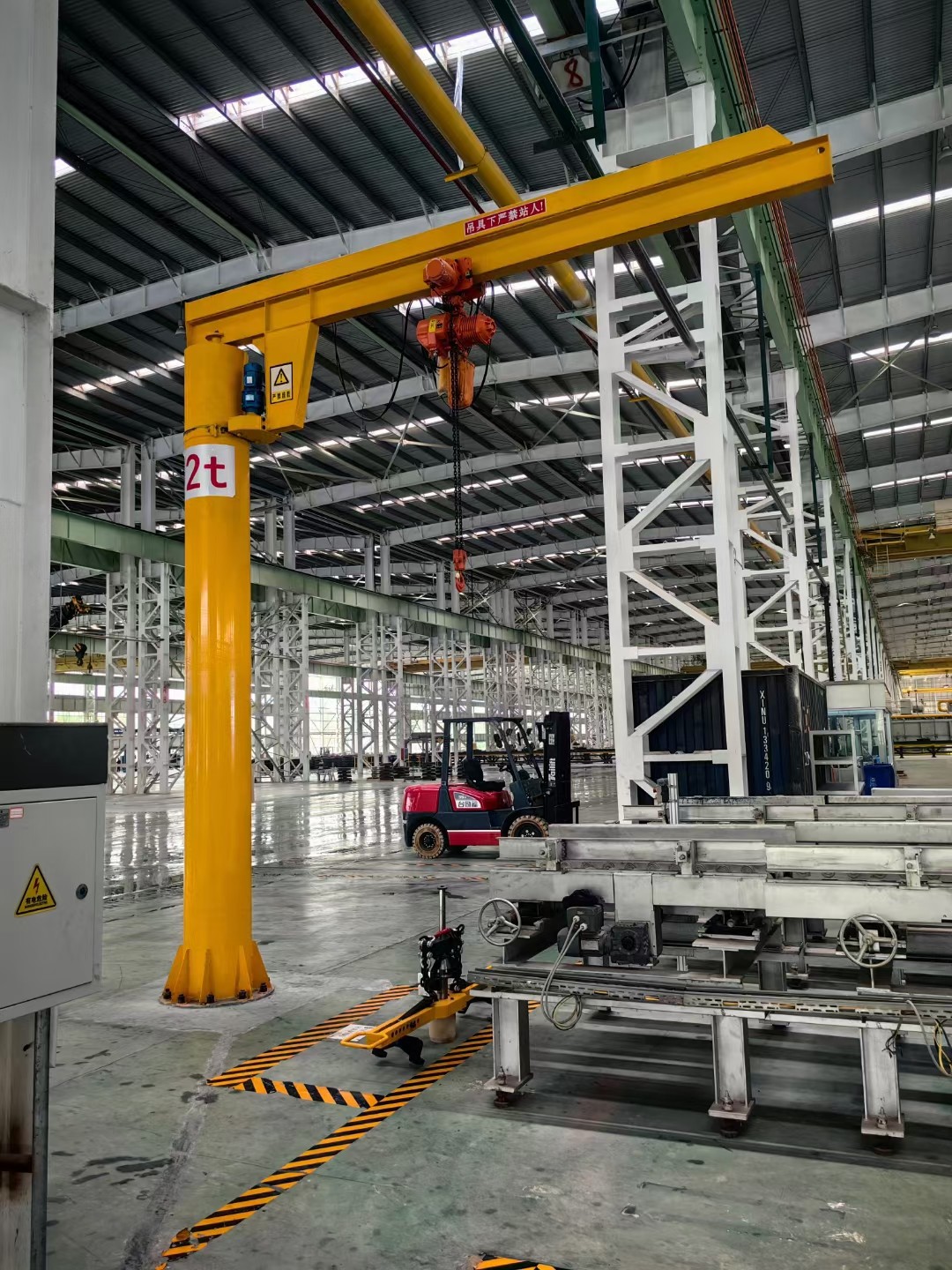

Column Mounted Slewing Jib Crane

Column mounted slewing jib crane is a special kind of lifting equipment. Its structure includes columns, cantilevers, bases, rotating mechanisms and lifting mechanisms. This equipment has the advantages of wide span range, flexible rotation, precise positioning and small footprint, and is widely used in various industrial fields.

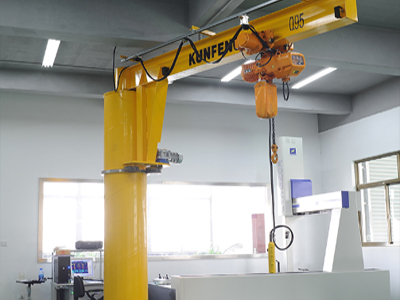

Composition structure of column mounted jib crane

• The column is the main support structure of the jib crane. It is fixed on the base and supports the cantilever and lifting mechanism. Columns generally use high-strength steel or concrete structures to ensure they have sufficient load-bearing capacity and stability. The jib is an important part of the jib crane, it connects the column and the lifting mechanism. Cantilevers are generally made of high-strength steel or aluminum alloy materials and have good bending and torsion resistance.

• The base is the basic part of the cantilever crane. It connects the column and the ground and bears the weight and impact load of the cantilever and lifting mechanism. The base is generally made of high-strength steel or concrete structure to ensure sufficient load-bearing capacity and stability.

• The rotating mechanism is a key part of the cantilever crane. It connects the cantilever and the base, allowing the cantilever to rotate 360°. The rotating mechanism is generally driven by a motor or hydraulic system and has the characteristics of high precision and high speed.

• The lifting mechanism is the core part of the jib crane. It connects the jib and the load and is used to lift and move the load. The lifting mechanism is generally driven by an electric hoist or hydraulic system, which has the characteristics of high precision and high speed.

Product features of column jib crane

• The friction force is small, the walking is light, the structure size is small, and the hook stroke is particularly advantageous;

• Compact structure, small size and low headroom;

• Light weight and flexible, it is an essential emergency lifting equipment for efficient automatic production lines;

• High efficiency, labor saving, small footprint, easy operation and maintenance;

• It is suitable for short-distance, intensive lifting operations and can be used frequently.

Click to contact us, and our team of crane experts will recommend the most suitable jib crane to meet your needs.
