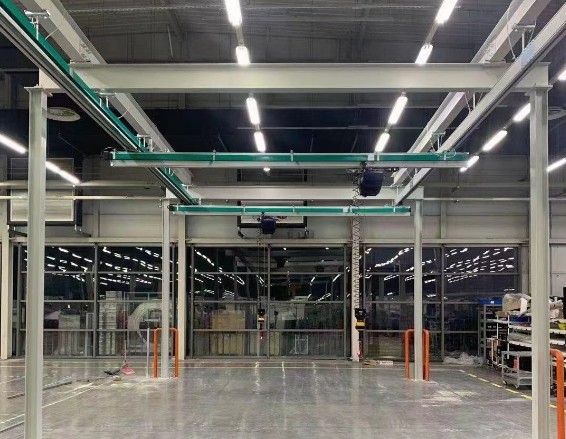

KBK Light Suspension Overhead Cranes

KBK light suspension overhead cranes are modular, combinable light overhead lifting systems mainly composed of light rails, suspension devices, traveling trolleys, electric or manual hoists, and support structures. With their modular structure and flexible layout, KBK light suspension cranes have become ideal material handling solutions for assembly lines, warehousing & logistics, and precision manufacturing workshops.

Main Components of KBK Light Suspension Cranes

KBK Rails: Made of high strength cold-formed profiles or aluminum alloy; optional built-in conductor rails or external power supply modes are available.

End Beams & Connectors: Used for rail connection, turning or support.

Traveling Trolleys: Equipped with electric or manual hoists, running smoothly along the rails.

Electric / Manual Hoists: Provide vertical lifting function, with lifting capacity typically ranging from 125kg to 2000kg.

Columns or Suspension Brackets: Used for floor mounting or ceiling suspension installation.

Product Advantages of KBK Light Suspension Cranes

• All components feature standardized dimensions, supporting various layouts including straight, curved and circular tracks to meet workshop structure or production line expansion requirements.

• Rails are made of high strength cold-rolled steel or aluminum alloy, featuring light weight and high strength, with low requirements on workshop load-bearing capacity.

• Optimized rail cross-section design combined with precision roller trolleys ensures low running resistance, smooth start-stop and accurate positioning.

• Bolted connection enables fast installation with minimal interference to production.

• The KBK system offers high standardization, low procurement and installation costs, and flexible later expansion.

Main Types of KBK Systems

KBK‑I (Monorail System): Suitable for straight or simple curved paths, commonly used for material conveying or multi-station auxiliary lifting operations.

KBK‑II (Single Girder Crane): Consists of two parallel rails and end beams; the hoist travels transversely along the main girder, covering a rectangular working area.

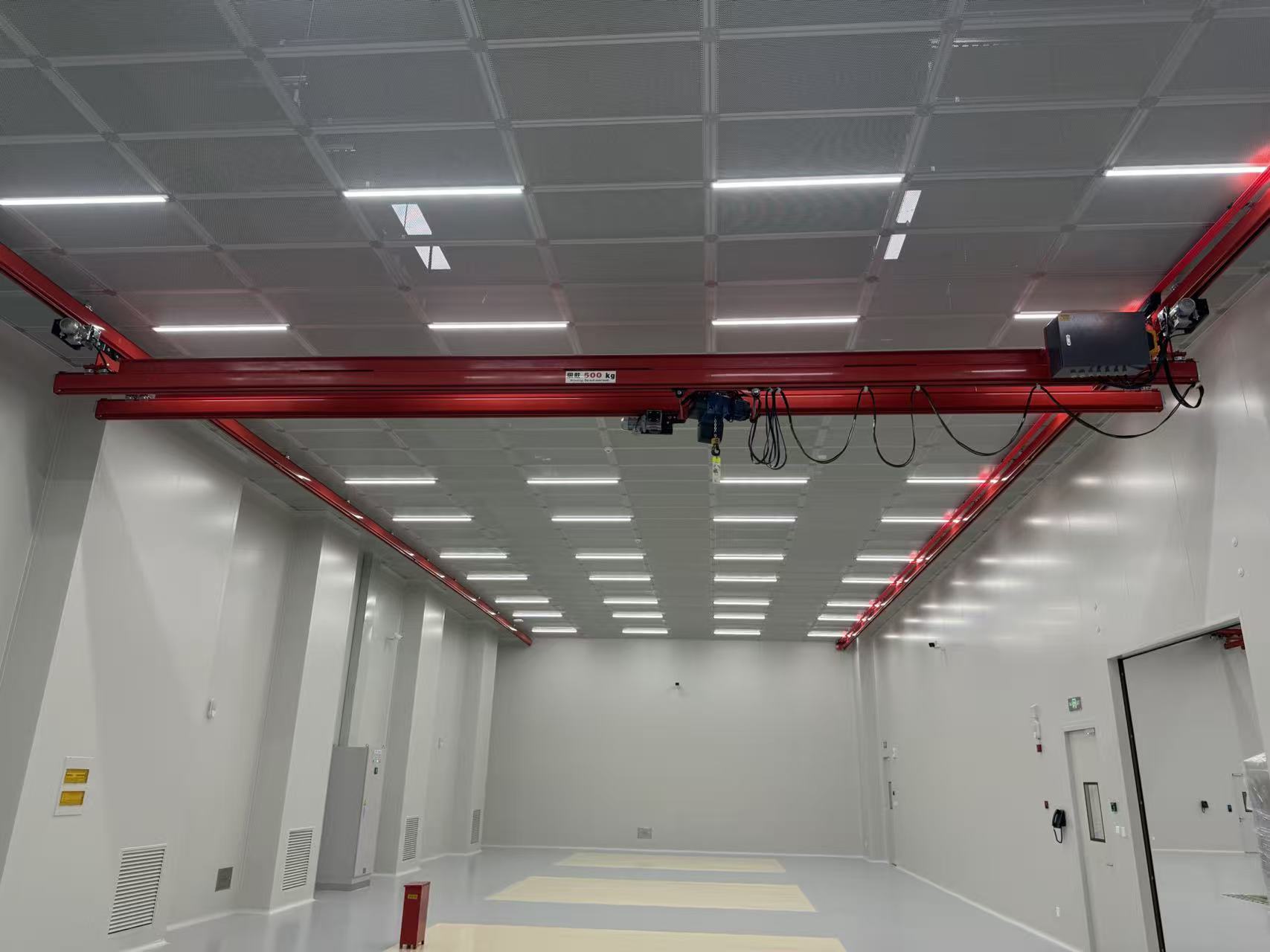

KBK‑III (Double Girder Crane): Improves system rigidity and stability, suitable for long-span or high-precision positioning applications.

KBK‑D (Aluminum Rail System): Lightweight and corrosion-resistant, making it an ideal choice for cleanrooms, laboratories or precision electronics manufacturing environments.

Why Choose KUNFENG Light Crane Systems

• Customized rail design solutions

• Multiple material options

• Accurate load calculation and structural optimization

• Fast delivery and technical support

• Comprehensive after-sales service system

Whether for new production lines or upgrading existing workshops, KUNFENG light crane systems provide stable and reliable material handling support. For detailed technical parameters or customized solutions, please feel free to contact us for professional technical support and product quotations.
