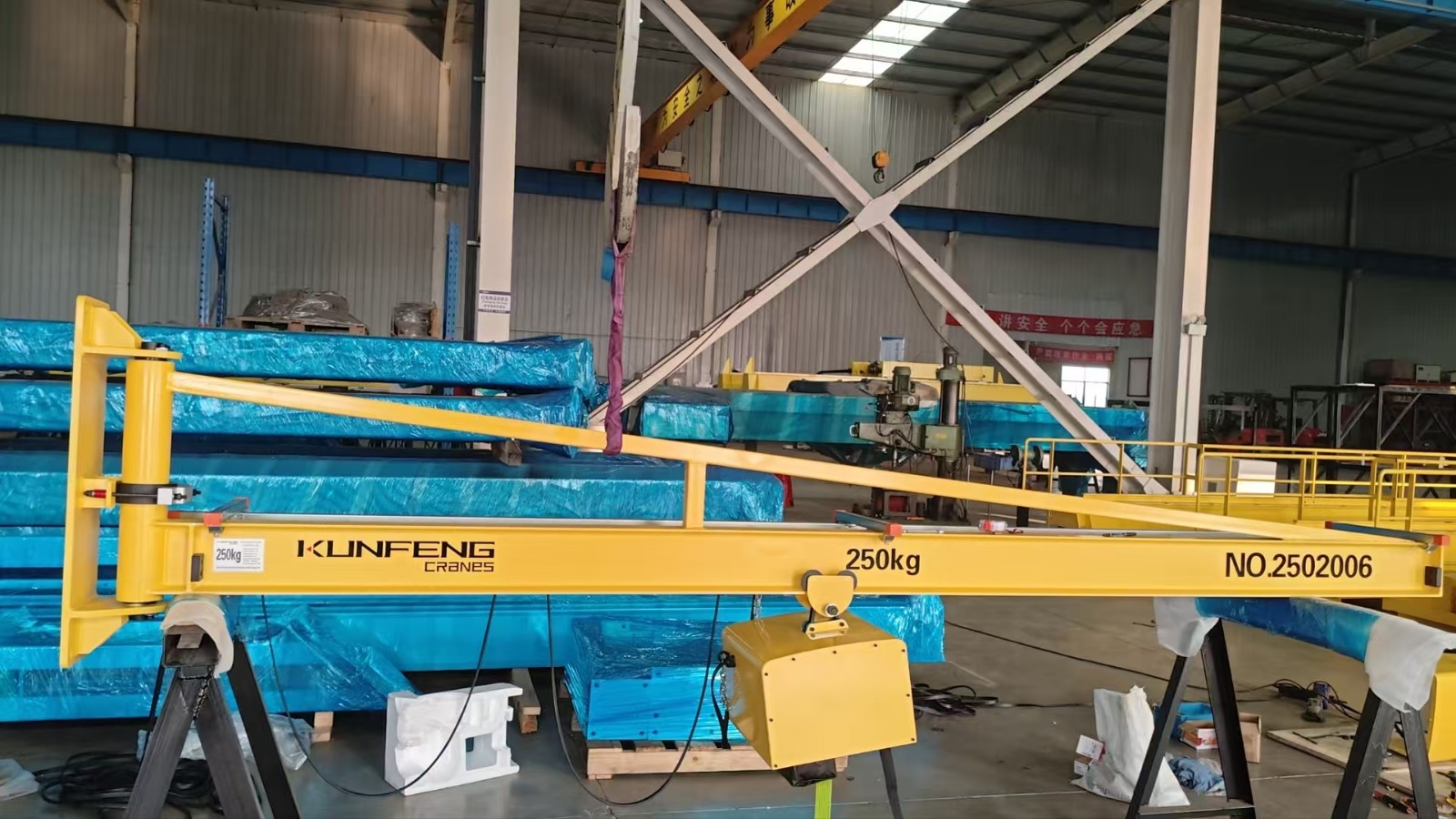

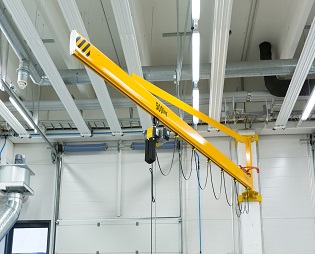

Wall Mounted Slewing Jib Crane

The wall mounted jib crane is a compact material handling equipment installed on the wall. It mainly consists of a rotating boom fixed on the wall, load hook and drive system. It can flexibly transfer heavy objects within a limited radius through the rotation of the cantilever arm, which can not only achieve efficient lifting but also save valuable ground space. The design is usually equipped with balancing device and safety protection system to ensure load balance and stable operation. It is widely used in warehouses, factories and small working environments, providing an economical and practical lifting solution.

Design Features of Wall Mounted Jib Crane

• Wall mounted installation saves floor space, making it ideal for narrow workshops or automated warehouse environments.

• Flexible movement within a limited radius enables quick lifting and transfer of heavy loads.

• Equipped with a 180° rotating jib, it allows precise positioning and handling of materials within the operating range.

• A comprehensive safety protection system and stable drive mechanism effectively ensure operational safety during equipment operation.

• The modular design simplifies installation and commissioning, while the enclosed transmission mechanism prevents dust ingress and extends the service life of the equipment.

Application Scenarios of Wall Mounted Jib Crane

• Warehouses and logistics centers: Used for lifting, sorting and handling of goods to help improve logistics efficiency.

• Automobile assembly and parts processing: Realize rapid lifting of engines and body parts in narrow workshops and adapt to collaborative operations of robot assembly lines.

• Maintenance and assembly workshops: Provide safe and stable support for heavy object handling during equipment installation, maintenance or disassembly.

• Precision manufacturing and electronics industry: Used for dust-free handling of micron-level components such as semiconductor wafers, precision instruments and display modules to avoid ground vibration interference.

The wall mounted jib cranes we manufacture feature modular design, precise control and environmental adaptability as their core advantages. If you are looking for a wall mounted workstation jib crane suitable for workshops, click to contact us for selection recommendation and product quotation.
