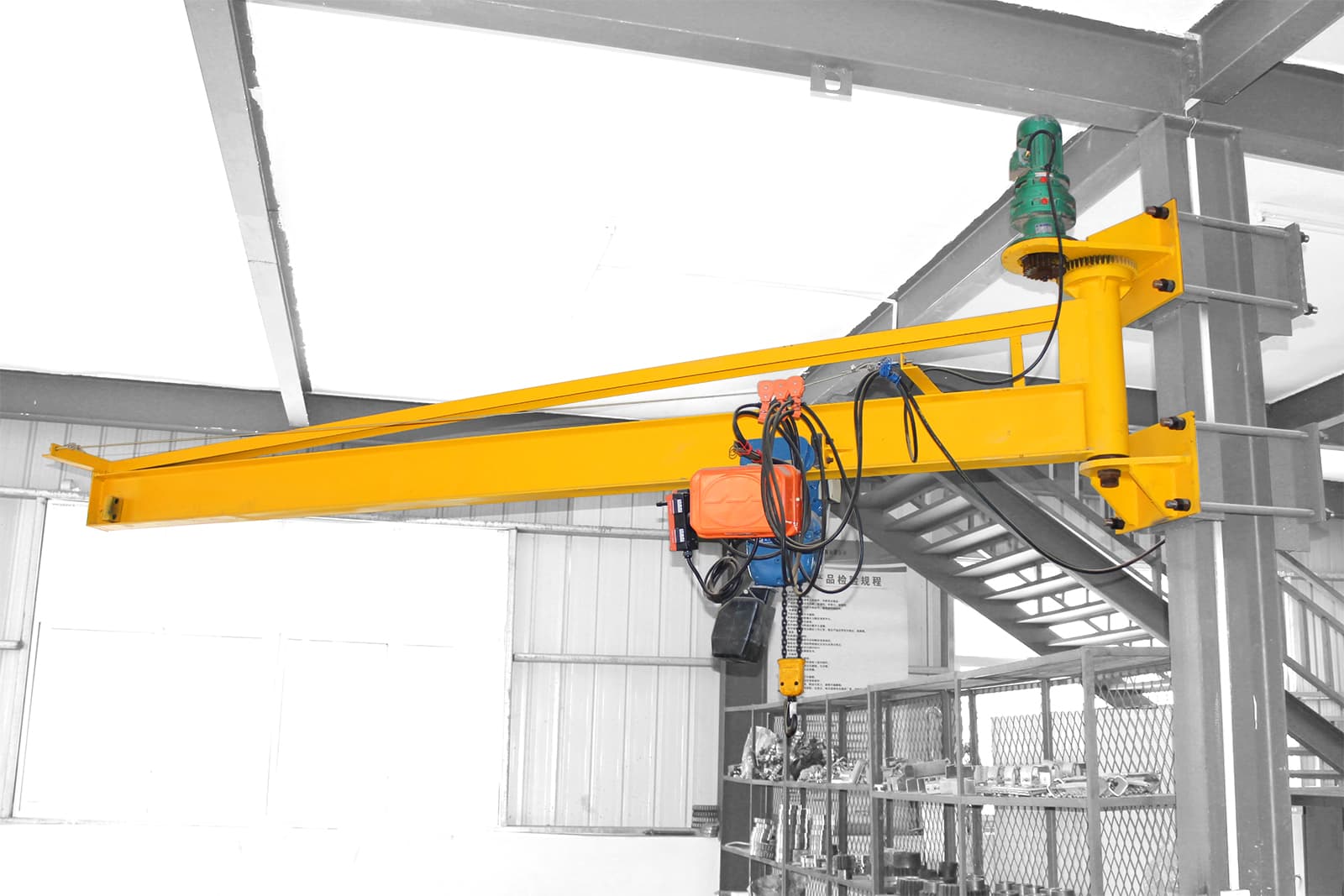

In modern lean production and flexible manufacturing environments, workshop workstations have put forward increasingly higher requirements for the efficiency, flexibility and safety of material lifting equipment. The wall-mounted workstation jib crane consists of a column bracket fixed to a wall or steel column, a rotatable jib and an electric hoist. The overall structure is compact, has no contact with the ground, and does not occupy valuable ground space; the jib can rotate 180° in all directions, and cooperates with the electric hoist to achieve precise lifting within the range of 200kg-5000kg lifting weight, which is an ideal solution for workstation-level point-to-point handling.

Main features of wall-mounted workstation jib crane

  ● The column and support arm are directly mounted on the beam, wall or column, without the need for anchor bolts and guide rails, which can save the ground working area to the maximum extent.

  ● The jib bearing adopts a high-precision slewing bearing, which can achieve continuous 180° flexible rotation, and the operator does not need to move back and forth.

  ● Equipped with an electric hoist, it can select single-speed/dual-speed/variable frequency lifting mode, equipped with height limit protection and overload limiter to achieve precise positioning and safety protection.

  ● The length and lifting capacity of the rotating arm can be flexibly customized according to the needs of the site to meet the hoisting requirements of different workstations.

  ● The whole machine is equipped with overload limit, high and low limits, and emergency stop buttons; the arm end can be equipped with an anti-collision buffer sleeve to prevent misoperation or collision with the wall.

Typical application scenarios of wall-mounted workstation jib crane

  ● Electronic manufacturing industry: inter-station transfer and assembly positioning of precision components such as chips and display screens;

  ● Loading and unloading: fast loading and unloading of workpieces next to injection molding, stamping, machining and other processes;

  ● Automobile assembly line: fixed-point hoisting and angle adjustment of medium-sized components such as car doors and dashboards;

  ● Maintenance station: disassembly assistance and multi-angle maintenance support for components such as engines and motors.

Customization and after-sales service

  ● Preliminary survey and scheme design: field measurement and process evaluation, provide the best wall bracket and arm length layout plan;

  ● Professional manufacturing and acceptance: strictly in accordance with ISO 9001 quality system production, complete load and rotation test before leaving the factory;

  ● Quick installation and commissioning: dispatch technical team to install on-site, structural correction and performance test to ensure that the equipment is put into use immediately;

  ● Training and maintenance: provide operation training, maintenance manual and 24-hour technical support, regular inspection and spare parts guarantee.

The wall-mounted workstation jib crane with electric hoist has become an indispensable workstation-level lifting equipment in factories and smart workshops with its compact and innovative wall-mounted structure, efficient and flexible rotation, precise and safe electric lifting and full customization capabilities. Welcome to contact our technical team and let us provide exclusive solutions for your production line!
